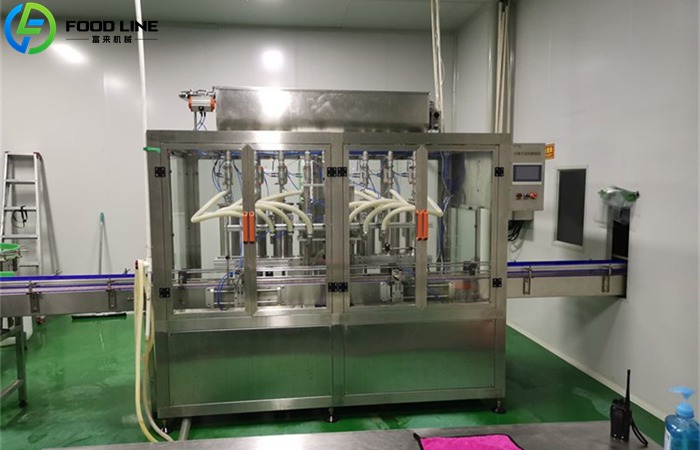

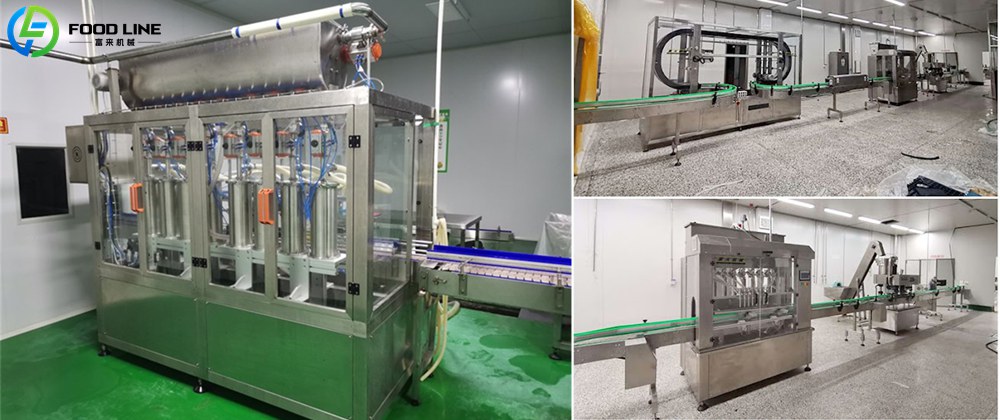

Tomato Sauce Filling Machine for Sale

Specifications of Tomato Sauce Filling Machine

Model	FL-12125	FL-18186	FL-24248	FL-323210	FL-404012
Machine name	High Accuracy Automatic Sauce Bottle Filling Machine
Washing, filling and capping heads	12-12-5	18-18-6	24-24-8	32-32-10	40-40-12
Production capacity(600ml) (B/H)	2000-4000	5000-7000	8000-12000	12000-15000	16000-20000
Suitable bottle specification(mm)	φ=50-110=170 330-2250ml
Washing pressure	2-3 kg/cm²
Motor power	2.2kw	2.2kw	3kw	5.5kw	7.5kw
Overall dimensions (mm)	2400×1650×2500	2600×1920×2550	3100×2300×2800	3800×2800×2900	4600×2800×2900
Weight	2500kg	3500kg	4500kg	6500kg	8500kg
Suitable for filling products	Ketchup, honey, chili sauce, water, juice, cooking oil, liquid, shampoo, motor oil, eye drops, laundry detergent, hand soap, detergent, face cream, etc.
Machine packing method	Stretch film + wooden box packing

Features of a Tomato Sauce Filling Machine

1. High-Viscosity Filling Capability

Perfect for:

• Tomato sauce
• Ketchup
• BBQ sauce
• Hot chili paste
• Jam & fruit puree
• Soup concentrates

2. Anti-Drip & Clean Filling

No dripping. No stringing. Ideal for sauce producers demanding high hygiene.

3. Customizable Filling Range

Wide options available from 50ml to 5L depending on your container size.

4. Precise Dosing System

Accuracy up to ±1%, reducing material waste and improving consistency.

5. Stainless Steel Construction (304/316)

Food contact parts comply with global safety standards (FDA, CE, GMP).

6. Supports Heated Filling

Maintains sauce temperature for smooth, uniform flow—important for thick or chunky sauces.

7. Easy to Clean (CIP/SIP)

Quick disassembly, sanitary design, and convenient maintenance.

How Does a Tomato Sauce Filling Machine Work?

Most tomato sauce fillers operate through a piston-filling mechanism:

1. The hopper loads and heats the sauce.
2. A piston draws the sauce into the cylinder.
3. The system dispenses a precise dose into each container.
4. Anti-drip nozzles ensure clean filling.

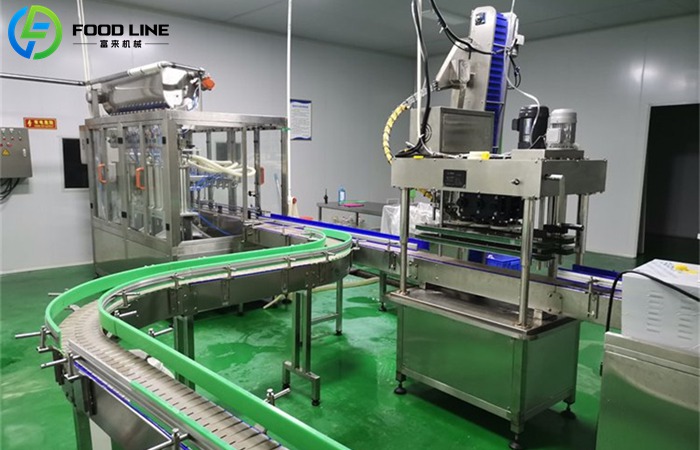

5. The conveyor moves containers to capping and labeling stations.

Servo-driven models offer higher speed and fully automatic accuracy.

Applications of Tomato Sauce Filling Machines

• Tomato sauce & ketchup factories
• Chili sauce & pepper paste processors
• Fruit puree & jam production lines
• Food condiment manufacturers
• Small packaged sauce business
• Industrial FMCG food plants

Optional Add-Ons (Highly Recommended)

• Heating and mixing hopper
• Anti-foaming filling system
• Multi-head filling
• Conveyor + bottle positioning
• Automatic capping machine
• Shrink sleeve labeling machine
• Date coding machine

Get a Free Quote for Tomato Sauce Filling Machine

Ready to upgrade your production?
Tell us your sauce viscosity, container size, and expected output—we’ll recommend the perfect machine.
