Foodline Automatic Mango Peeler can handle large volumes of mangoes with speed, consistency, and minimal waste. This machine can be used for juice factory, fruit packaging plant, or frozen mango production line.

Tel/WhatsApp 008613598866720

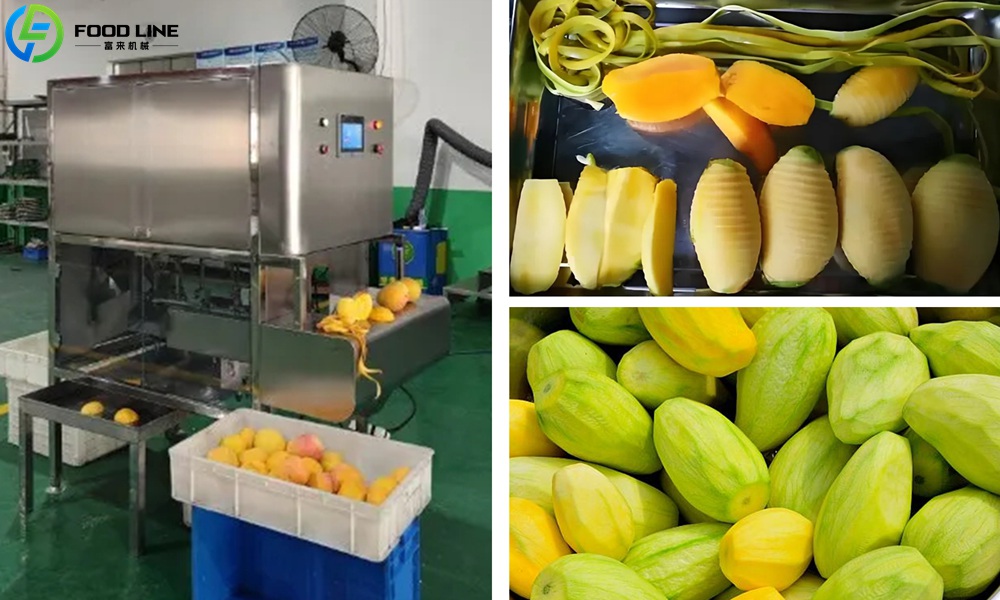

Foodline Commercial Mango Peeler Machine
This automatic mango peeler uses precision blades and adjustable peeling settings to remove skins quickly while preserving the fruit flesh.
Technical Specifications of raw mango peeling machine
Model | FL-MP01 |

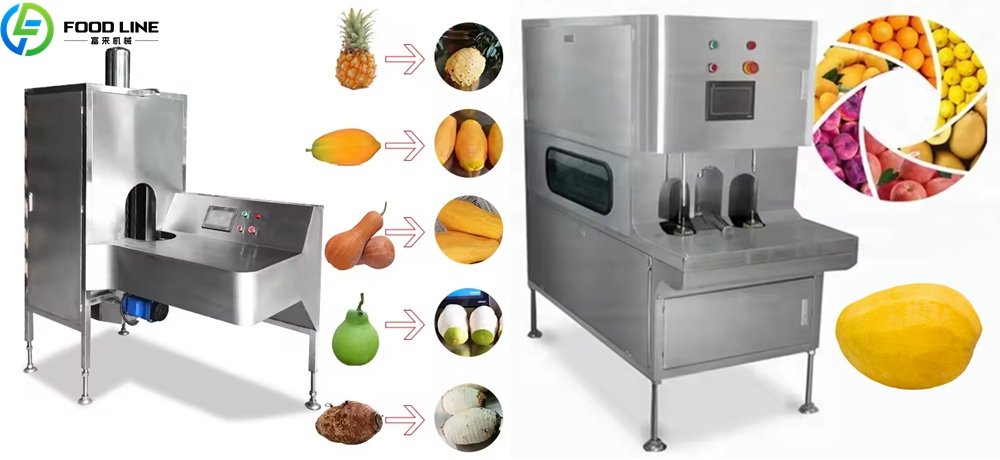

Application | Pomegranate, Prickly Pear, Pomelo, Mango, etc. |
Material | Stainless Steel 304 Entirly |
Voltage Supply | 380V / 3 Phrase /50Hz |
Voltage Input | 3.0 KW |
Capacity | 1000-3000 pcs/h |
Rotating speed | 45-90 Rpm |
Gross Weight | 350 KG |
Machine Dimension(L*W*H) | 2050*850*1550mm |
Control system | Omron PLC system |
How Does the Foodline Mango Peeling Machine Work?
- Fruit Loading – Place mangoes into the feeding system.
- Automatic Positioning – Machine adjusts to hold mangoes firmly.
- Precision Peeling – Rotary blades remove skin with adjustable depth.
- Output – Clean, ready-to-process mangoes for slicing, pulping, or packaging.

Features of Automatic Mango Peeler Machine For Sale
- It peels hundreds of mangoes per hour.
- Gets a perfect peel every time, on any size fruit.
- Built for easy cleaning with food-grade stainless steel.
- Saves significant labor by reducing manual peeling.
- Adjusts easily for any type of mango.
Frequently asked questions
Q: Can it handle different mango sizes and varieties?
A: Yes. Adjustable clamping and recipe presets accommodate a wide range of sizes and common varieties.
Q: How gentle is the peeling process?
A: The system is designed to minimize bruising with controlled gripping and contour-following peeling heads.
Q: What’s the typical yield?
A: Yield depends on variety and ripeness. Our engineering team will help tune parameters to your fruit profile to maximize recovery.
Q: Is it easy to clean?
A: Yes. It features tool-less disassembly of key components and an open, washdown-safe frame. CIP options are available.
Q: What utilities are required?
A: Electrical power is required; many configurations also use compressed air and process water. Exact specs vary by model.
Q: Can it integrate with our existing line?
A: Absolutely. We provide infeed/outfeed options and controls integration for seamless operation.
Q: Do you provide training and support?
A: Yes. Commissioning, operator training, spare parts, and preventive maintenance plans are available.
Q: What’s the price and lead time?
A: Pricing and lead time depend on configuration and volume. Contact us for a tailored quote.
